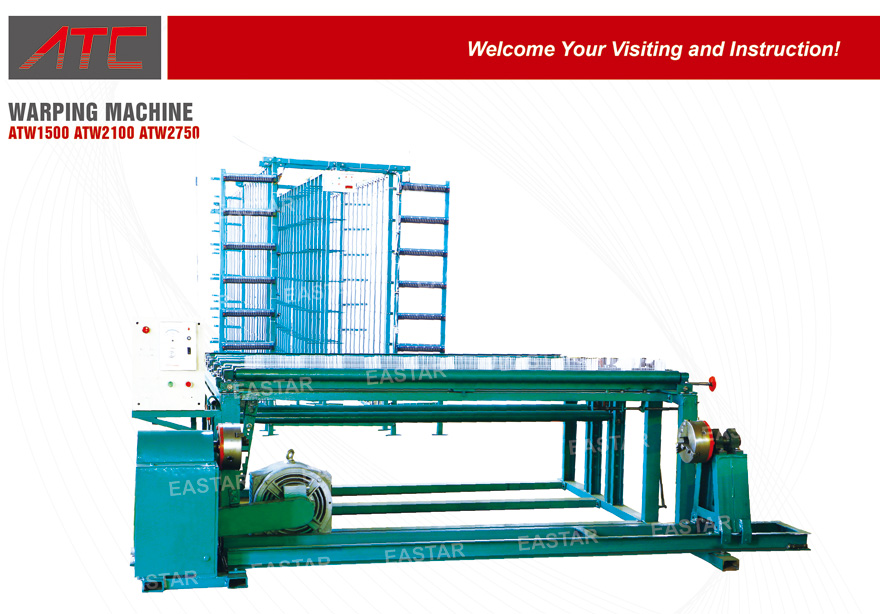

PP Yarn & Yard Beam Warping Machine
ATC Series Jacquard weaving machine For Decoration PP mat carpet
FEATURES (ATC900 36" ATC1200 48" ATC1800 72" ATC2750 108" Mat width )
Machine rotation is faster than that of the previous model
Weft PP Pipes are automatically fed by feed roll.
In a jacquard system, PP pipes are selected by design cards , which makes it possible
To weave variously designed PP mats. The operator can easily change the design by
Replacing the design card.
One worker can operate 4 to 6 jacquard weaving machines
Models equipped with left and right 2-Color Feeders are available for weaving2 to 4 colored PP mats.
Automatic Thickness Adjustable Device
This device is for feeding warp thread automatically from the warp beam.
Mat length (thickness) is freely adjustable.
Feeder for weft PP pipe
Feeder capacity is 1.5 times larger than that of the previous model. Which makes it possible to place and stock more PP pipes in the hopper and also makes it very easy to insert pp pipes into the feeder.
Misfeed preventing mechanism
(Sequence controller is used) in the event one weft pp pipe is not fed to the machine, this mechanism automatically prevents and removes the next coming pp pipe.
Upper guide pipe for warp thread
Upper and lower guide pipes are made of high quality stainless steel, thus eliminating the problem of rust.
Cam
Cam has been especially hardened to endure high speed rotation.
Feed roll
The feed roll rubber is made of hard urethane of sufficient durability. A special high quality bearing is used for the under roll.
Model |
ATW1500 |
ATW2100 |
ATW2750 |
Working Beam Width |
1500MM |
2100MM |
2750MM |
MAX Beam Outer Diameter
with Yard |
115mm-400mm |
115mm-400mm |
115mm-400mm |
Motor |
Three Phase 380V 50HZ Electromagnetic Stepless
variable speed Asynchronous Motor 4.0KW 125 RPM-1250RPM |
Main Spindle RPM |
0-60RPM |
0-60RPM |
0-60RPM |
Brake Mode |
Mechanical brakes |
Mechanical brakes |
Mechanical brakes |
Yard Speed |
0-1150MM / Minute |
Control System |
Mechanical |
Main Driving |
Eccentric drive for Guide Bar / Gear Box Link for Beam |
Yard Let-Off Device |
Beam Drive |
CREELS STANDS |
2PCS Stands and with
374PCS Creels at least |
2PCS Stands and with
442PCS Creels at least |
2PCS Stands and
with 577PCS Creels at least |
Driving form |
Worm Reducing Speed Gear Box |
Batching Device & Yard
Drawing System |
Beam Drive |
Swithch Assembly |
CE Stanards High Safety Switch Assembly |
Driving roller |
8pcs |
8pcs |
8pcs |
Guide Bar & Needles QTY |
22 X 17 pcs Needles |
26 X 17 pcs Needles |
34 X 17 pcs Needles |
Guide Needles Space |
6mm |
6mm |
6mm |
Infrared stop |
Optional |
Transport Sizes |
2.5*1.15*1.35 M |
2.5*1.25*1.35 M |
2.5*1.35*1.35 M |
Weight |
1200KGS |
1400KGS |
1600KGS |
Note |
1PC Warper can fits 6PCS Jacquard Loom |
