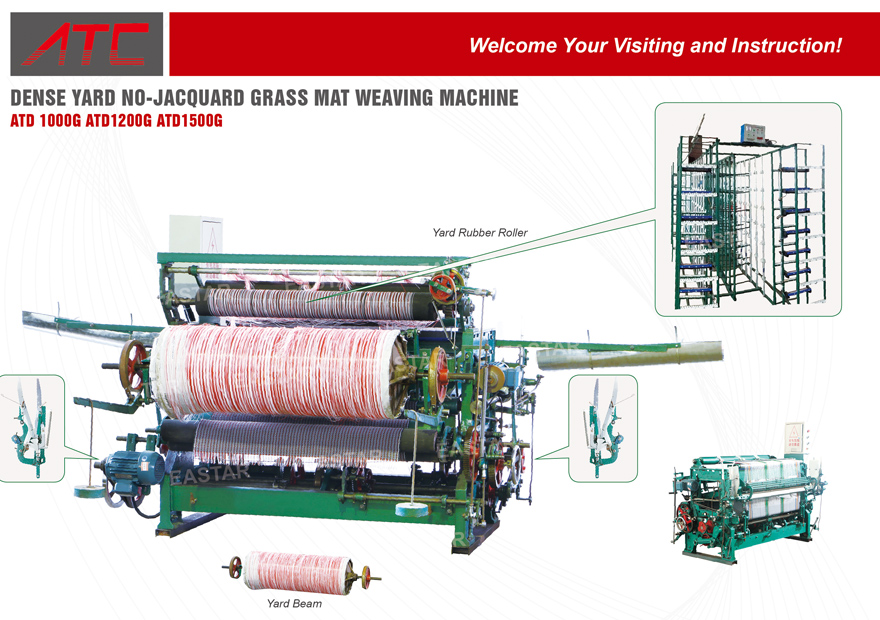

Colored Warp Straw Grass Mats Weaving Machine 40” 48” 60”
- Machine rotation is faster, So Productivity is higher ; Working Speed is adjustable
- Weft PP Pipes are automatically fed by feed roll
- No Jacquard System and Design Card; 4 PCS Warp Yarn Distribution can make Mat Design; only stripe mats is available
- Warp Yarn can be supplied by Warper Beam or Creel Stand cross Rubber Roller
- One worker can operate 4 to 6 jacquard weaving machines
- Models equipped with left and right single Color 2PCS Feeders
- Feeder for weft PP pipe, Feeder capacity is 1.5 times larger than before, which makes it possible to place and stock
more PP pipes in the hopper and also makes it very easy to insert pp pipes into the feeder. - Upper guide pipe for warp thread, Upper and lower guide pipes are made of high quality stainless steel, thus
eliminating the problem of rust. - Cam has been especially hardened to endure high speed rotation.
- The feed roll rubber is made of hard urethane of sufficient durability. A special high quality bearing is
used for the under roll.
Model |
ATD1000G | ATD1200G | ATD1500G |
| Actual PP Mat Width | 1000MM | 1200MM | 1500MM |
| 39.40" | 47.25" | 59" | |
| Main Weaving Motor | Single Motor Three Phase 380V 50HZ 0.55kw,CE Stanard | ||
| Main Spindle RPM | 100-130RPM | 100-130RPM | 90-120RPM |
| Brake Model | Mechanical Brake For Yard Beam & Main Spindle | ||
| Tube Imichi | Double Tube Imichi | ||
| PP Tube Feeder | 2PCS ,One Left and the other right | ||
| PP Tube Length | 1200MM | 1400MM | 1700MM |
| PP Tube Feeding Motor | Double Motors,Three Phases 380V 50HZ 0.18KW, CE Standard | ||
| PP Tube Hopper | 2PCS holders, One Left and One Right | ||
| Hopper Place | 1PCS on Left and 1PC on right | ||
| PP Tube Feeder | 2PCS Feeders, One Left and One Right | ||
| MAX Avaliable Tube Colors | Single Color | ||
| Warp Yard Thread Space | 1.2-1.6mm | ||
| Yard Thread distribution System | 4 sets / Two UP and Two Down | ||
| Yard Warper Beam | 1pc | ||
| Warp Beam Width | 1000mm | 1200mm | 1500mm |
| Yard Color | Any | ||
| Jacquard Loom | no | ||
| Mat Pattern | Stripe | ||
| Productivity | 10-13 meters per hour | 10-13 meters per hour | 10-12 meters Length per hour |
| Machine Net Weight | 1100kgs | 1200kgs | 1500kgs |
| PACKAGE SIZE | 2.2*1.1*1.8M | 2.2*1.1*1.8m | 2.8*1.1*1.8M |
| NOTE: | The Mat Come out of the Back | ||
